Photo requirements 照片要求
– Connector to the left
– 连接口到左侧
– Can see whole connector
– 可以看到整个连接口
– Can see whole pcb
– 可以看到整个pcb

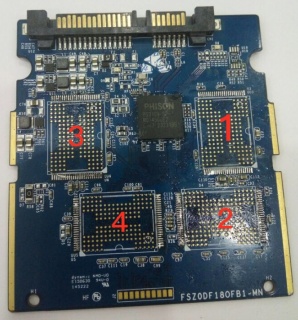

– Chip read order numbers (as on example)
– 芯片读取的编号(如示例)
– Good photos can be done with standard office docement scanner
– 可以用标准的办公室扫描仪完成拍报良好的照片

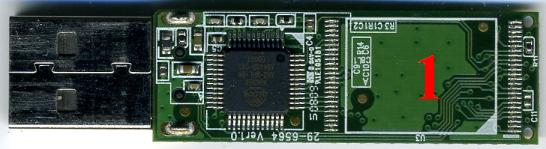

Good photo example 好的照片示例
Bad photo examples 糟糕的照片示例
Connector cuted:
连接口不完整:
Connector must be at left. Not aligned horizontally:
连接口必须在左边。水平不对齐
Not aligned horizontally. Do not put desoldered chips on photo:
水平没对齐。不要把拆除的芯片放在照片上。
PCB borders cuted:
PCB边框不完整:
