Directory

Catalog consists of 32 bytes records. These records describe files and catalogs inside catalog.
目录包含32个字节的记录。这些记录描述了目录内的文件和目录。

First two records in catalog (except root) describe this catalog and catalog located on upper level.
目录中的前两个记录（除根）描述位于上层的此目录和目录。

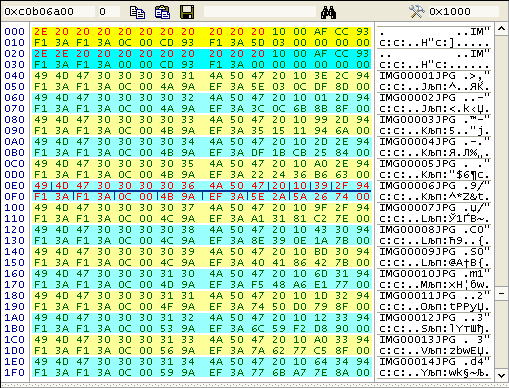

To find these records with Hex Editor use signatures :
要使用Hex Editor查找这些记录，请使用：
2E00000000000000000000/h
2E2E000000000000000000/h

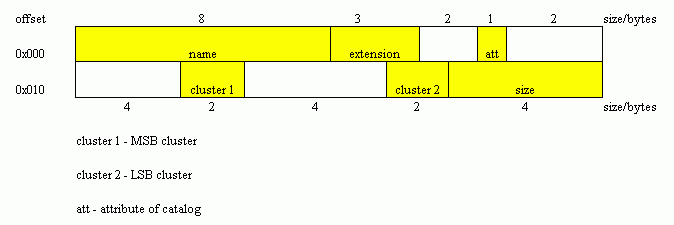

Shift    Size    Descryption
   0-0     1   -  The first symbol of file name èìåíè (deleted - E5)
   1-10    10  - Other  2-11 symbols of file name
  11-11    1   - Attributes of file
  12-12    1   - Reserved
  13-13    1   - Time creation (tenth parts of second)
  14-15    2   - Time creation (hours, minutes, seconds)
  16-17    2   - Date creation
  18-19    2   - Date of last usage
  20-21    2   - MSB cluster
  22-23    2   - Date of last modification (hours, minutes, seconds)
  24-25    2   - Date of last record
  26-27    2   - LSB cluster
  28-31    4   - File size (0 for catalogs)
